AbrasaPipe
Internally or Externally hardfaced pipes, elbows and transitions for resistance to slurry wear.
Sizes as small as 3 inches diameter!
Stemming from the long term success of Avweld’s AbrasaPlate®, we are now pleased to introduce AbrasaPipe®. AbrasaPipe® is hardfaced mild steel pipe, which offers many times longer life than mild steel pipe. The chrome carbide overlay features excellent smoothness, hardness and abrasion resistance.
AbrasaPipe® has already had significant success in applications including underground mining and cement, where the cost of replacing worn out pipe is far higher than the costs of pipe. Using AbrasaPipe® means that our customers can rest easy – knowing they have the longest life pipe product available.

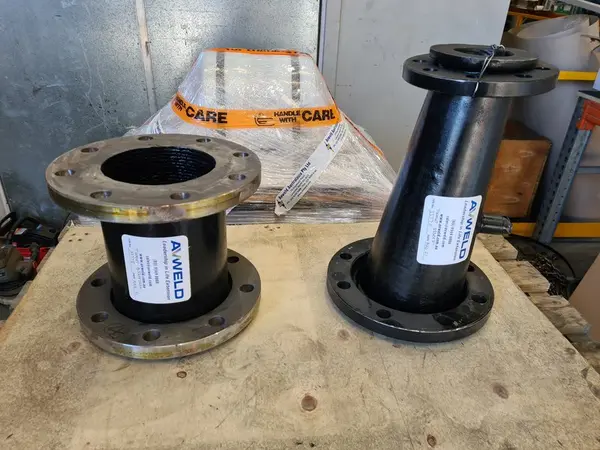

AbrasaPipe® is available either as straight pipe, or with custom or standard flanges already fitted. Ask your Avweld representative for details.
<Download AbrasaPipe® Brochure>
PIPE SIZES
| mm | Inch | OD | ID | Internal Hardfacing (mm) |
|---|---|---|---|---|
| 63 | 2.5 | 73 | 52 | 3 |
| 75 | 3 | 89 | 72 | 3 |
| 90 | 3.5 | 102 | 86 | 3 |
| 100 | 4 | 114 | 98 | 3 |
| 150 | 6 | 168 | 150 | 3 |
| 200 | 8 | 219 | 197 | 4 |
| 250 | 10 | 273 | 249 | 4 |
| 300 | 12 | 324 | 297 | 4 |

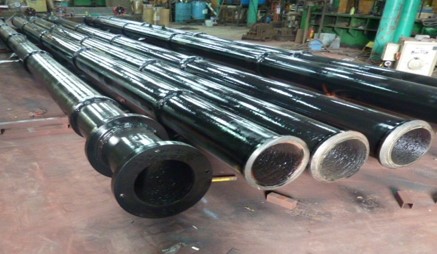

Avweld Internally hardfaced wear pipe AbrasaPipe

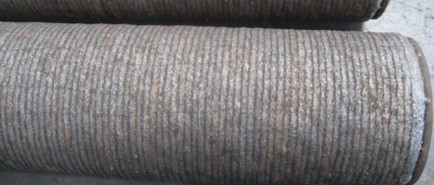

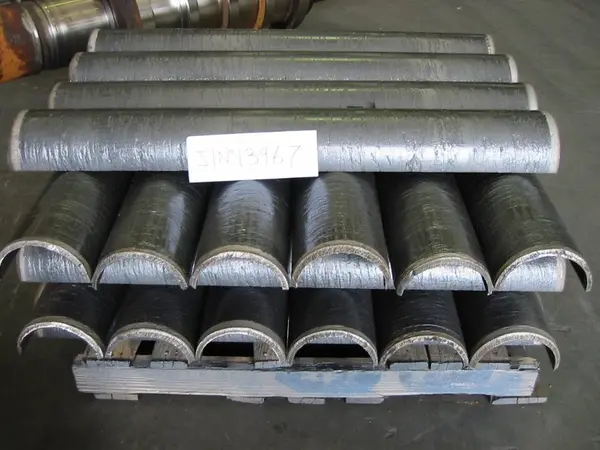

Externally hardfaced AbrasaPipe
Hardfaced pipes are available down to 50mm diameter
Chrome carbide weld overlay AbrasaPipe

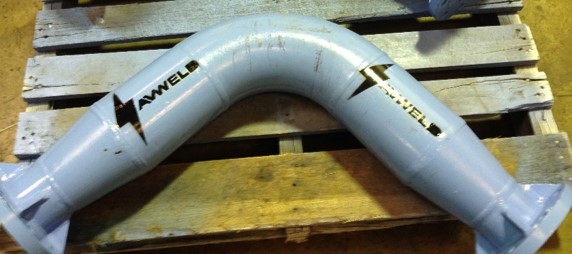

AbrasaPipe elbow for extreme abrasion resistance

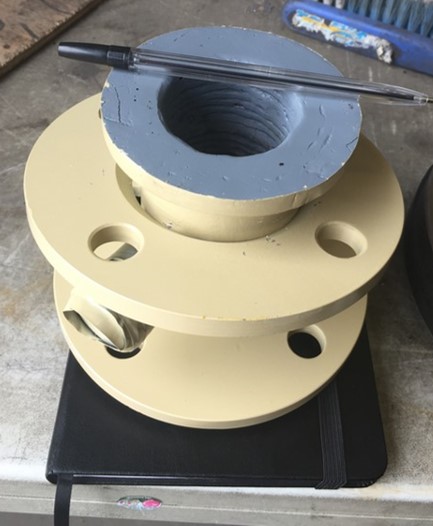

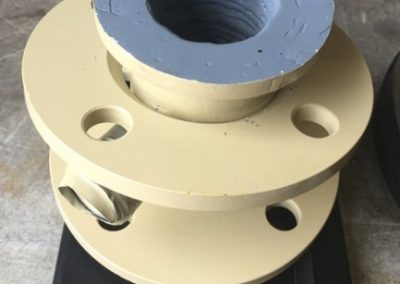

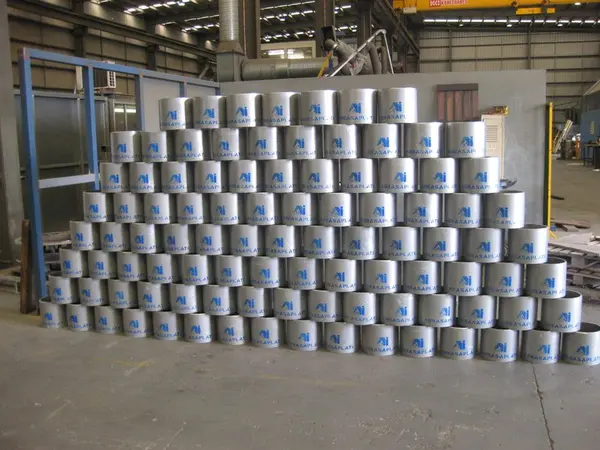

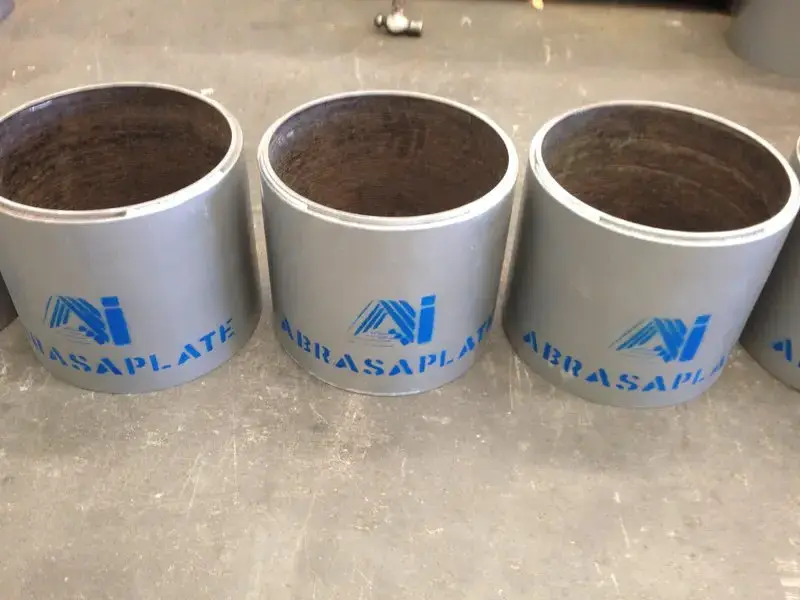

Internally Hardfaced AbrasaPipe

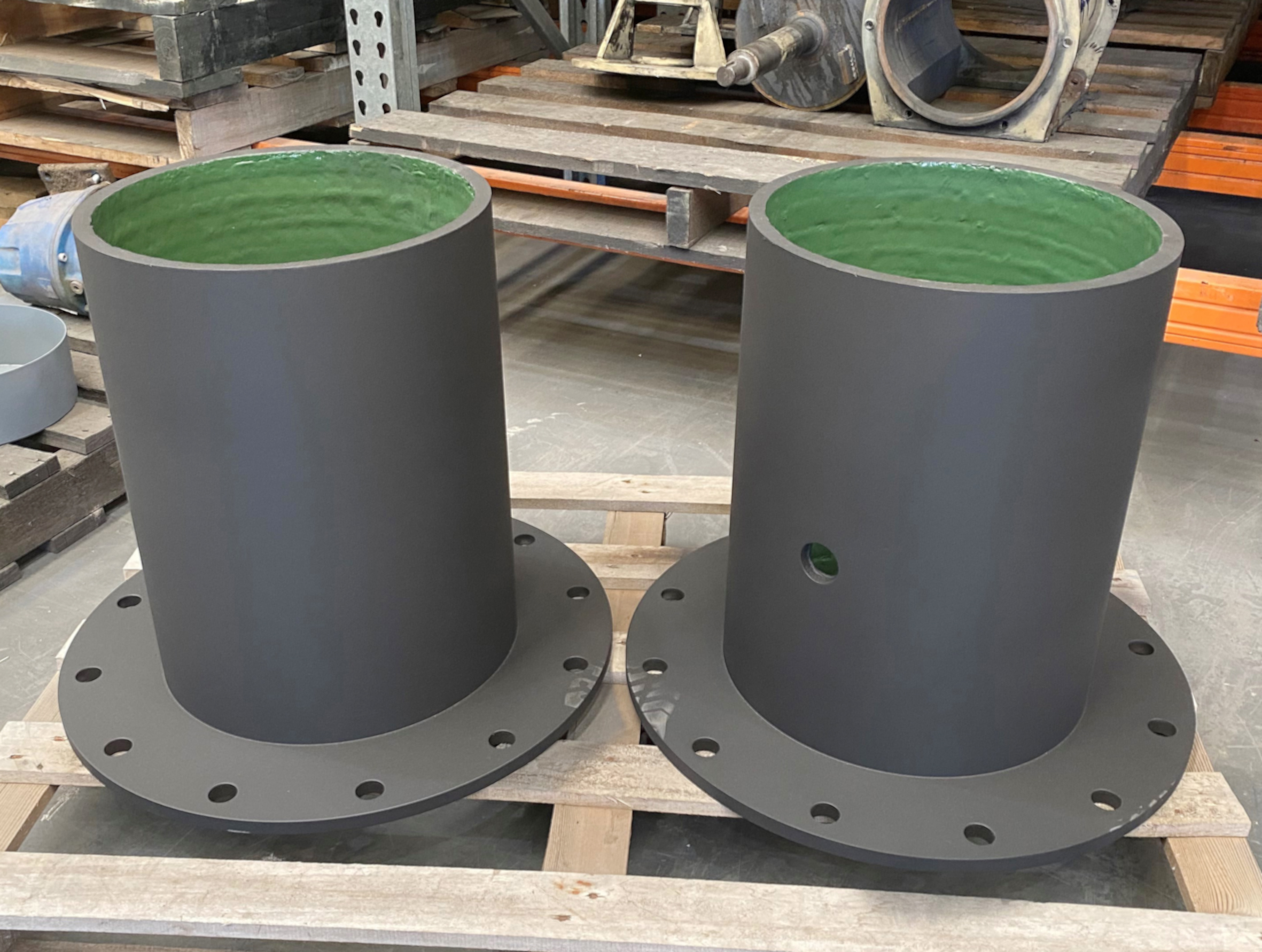

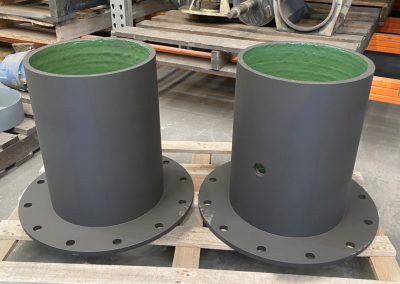

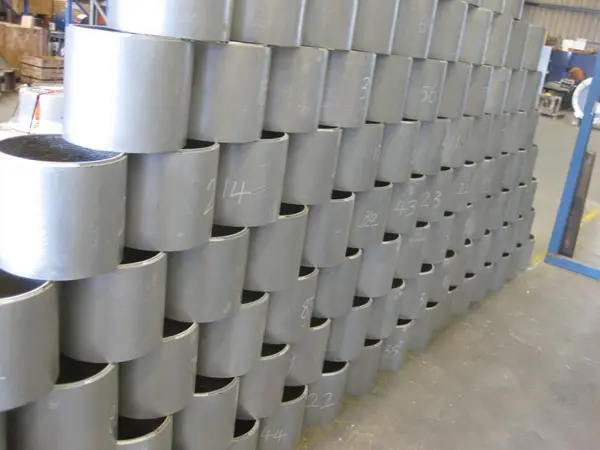

Internally hardfaced AbrasaPipe

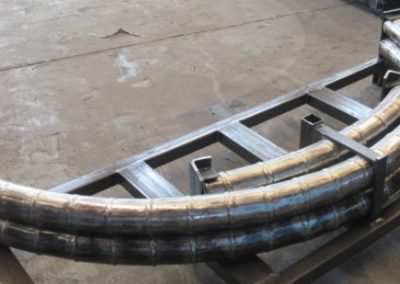

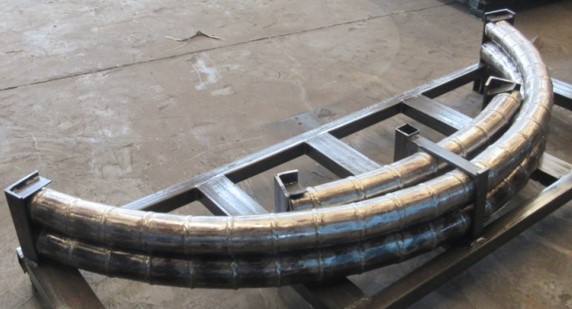

Internally hardfaced lobster back elbow

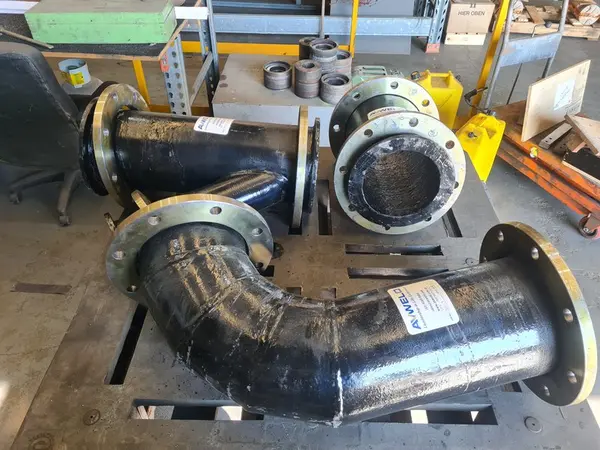

Externally hardfaced AbrasaPipe
