AbrasaPlate Crack Free
Smooth, Low Friction Weld Overlay Wear Plate for resistance to hang-up of sticky materials

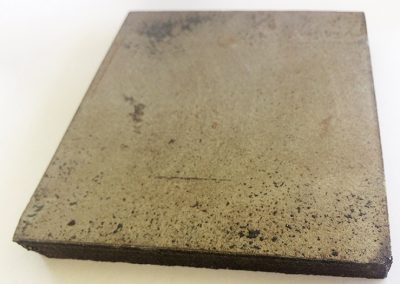

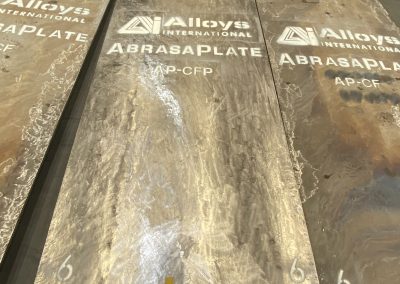

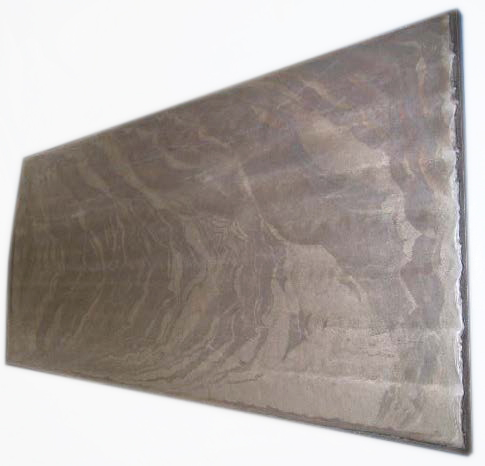

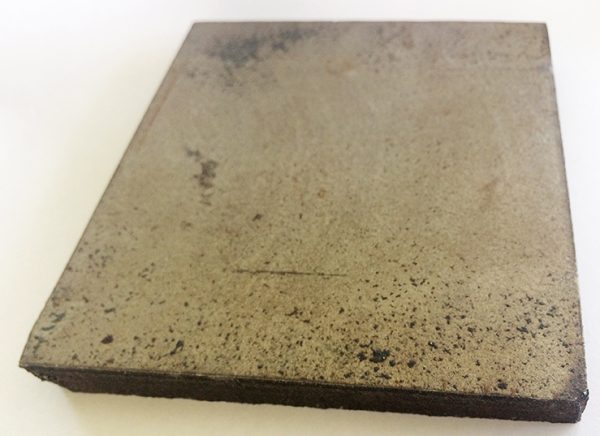

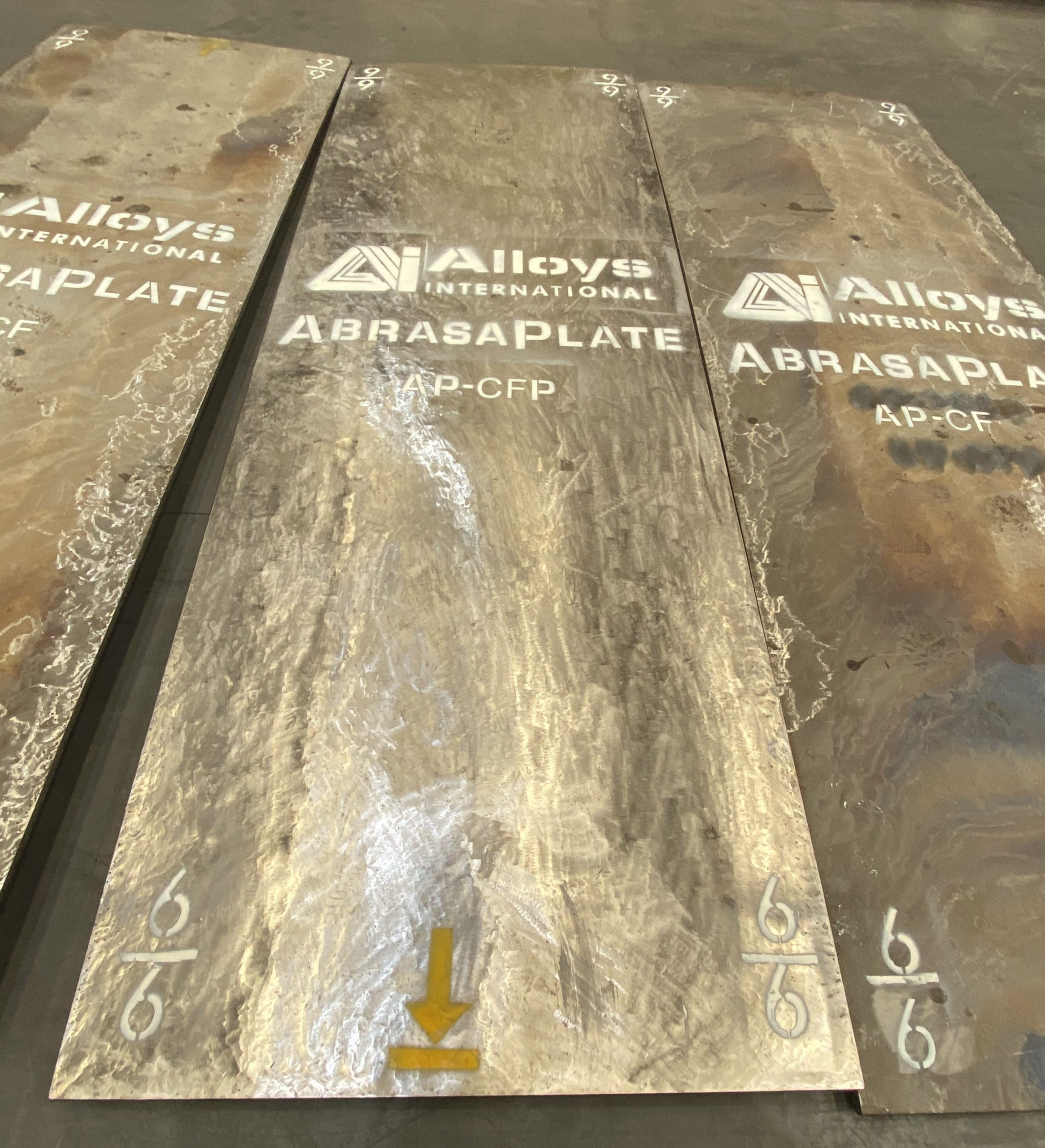

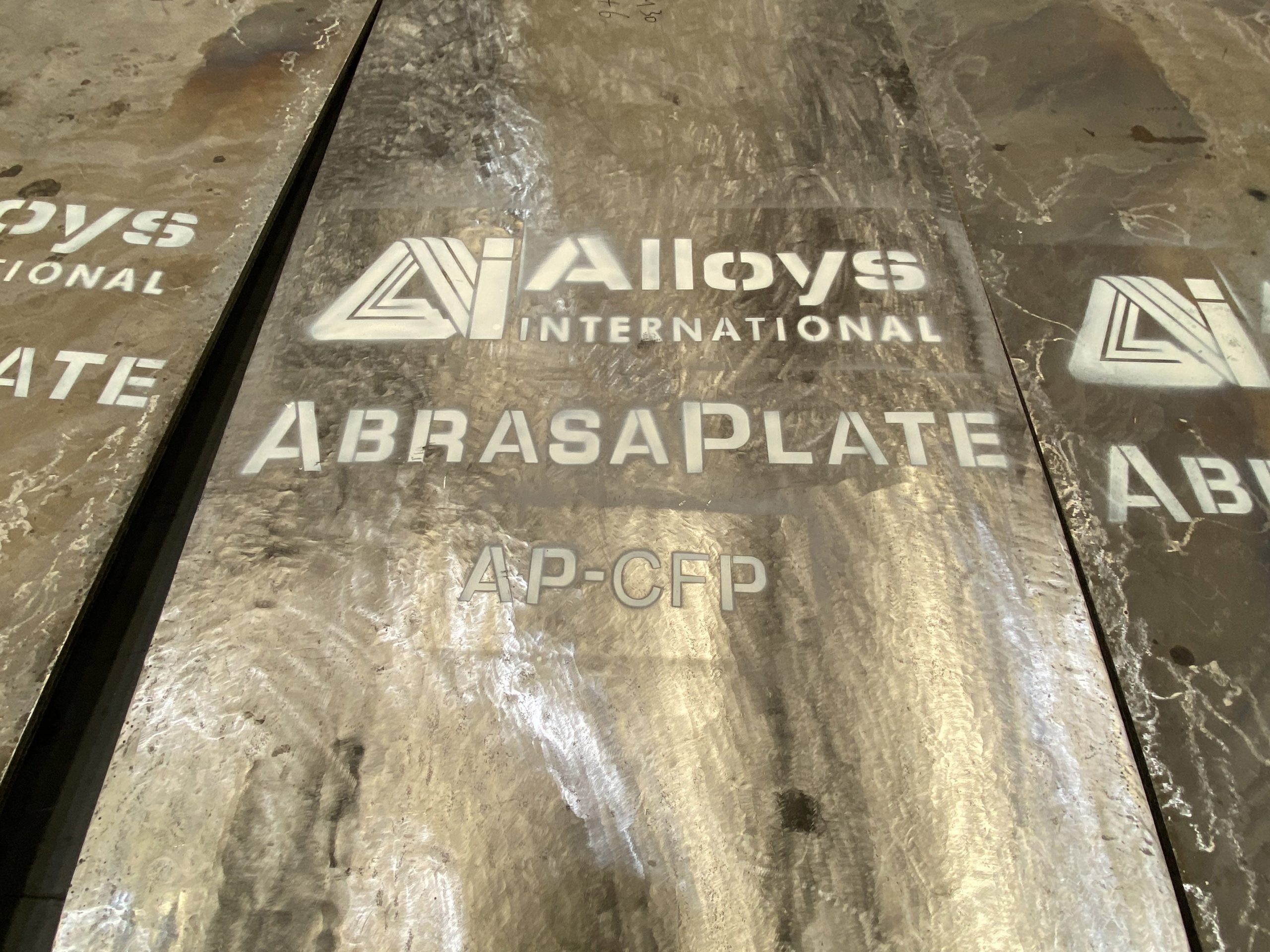

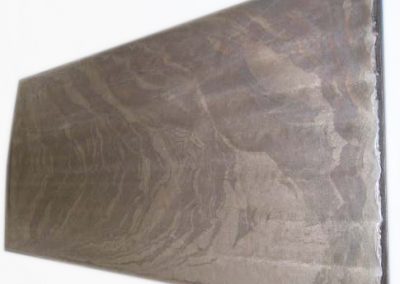

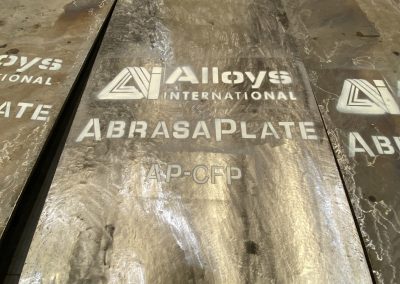

AP-CF AbrasaPlate® is a high quality compound weld-overlay hardfaced plate. The chrome carbide overlay is applied in a unique fashion which results in a hard, wear-resistance cladding, despite being crack free. The extremely smooth surface finish results in reduced hang up from sticky ores. ASTM G65 wear resistance test results exceed that of AP-3000 AbrasaPlate®.
APPLICATION
Application requiring a combination of high wear resistance with a smooth surface finish.
- Ash Lines
- Chutes & Ducts
- Hoppers
PROCESSING
- AbrasaPlate®-CF can be welded on the mild steel using standard low hydrogen consumables. For welding the hardfacing side to structural steels we recommend using AI-1707 stainless wire, or AI-207 electrodes.
- AbrasaPlate®-CF can be rolled or pressed. Diameters depend on thickness of plate.
- AbrasaPlate®-CF can be cut using plasma (from the back side), water jet or laser.
| COMMON SIZES Crack Free AbrasaPlate |
|---|
| 6 on 6 |
| 1m x 3m max sheet size |
| COMMON APPLICATIONS | ||
|---|---|---|
| Chutes | Truck Beds | Buckets |
| Ducts | Screen Plates | Hoppers |
| Pump Casing | Transition Segments | Crushers |
| Fans | Elbows | |
