AbrasaPlate-X Cross Hatch Wear Plate
A self-protecting weld overlay wear plate for increased resistance to impact and sliding abrasion.
Lighter weight for longer wear life.
Save weight with 8/6 AbrasaPlate
Also available: 8/6-X Cross Hatch
Now in Stock!
Cross hatch AbrasaPlate®-X is light weight, and outstanding for high impact applications. It is made of mild steel backing, with a weld overlay chrome carbide hardfacing, then a 3mm thick hardfaced cross hatch pattern.
The cross hatch pattern enables bulk solids to fill up depressions in the surface, and then selfprotect.
It also provides outstanding impact resistance.
AbrasaPlate-X has double the life of standard plate in many applications, as seen in this bucket wear strip comparison below:
| COMMON SIZES Cross Hatch AbrasaPlate |
|---|
| 4 on 4 |
| 4 on 6 |
| 6 on 8 |
| 8 on 6 |
| 9 on 10 |
| 12 on 12 |
| COMMON APPLICATIONS | ||
|---|---|---|
| Chutes | Truck Beds | Buckets |
| Ducts | Screen Plates | Hoppers |
| Pump Casing | Transition Segments | Crushers |
| Fans | Elbows | |

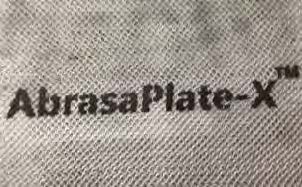

AabrasaPlate-X Cross Hatch for increased impact resistance

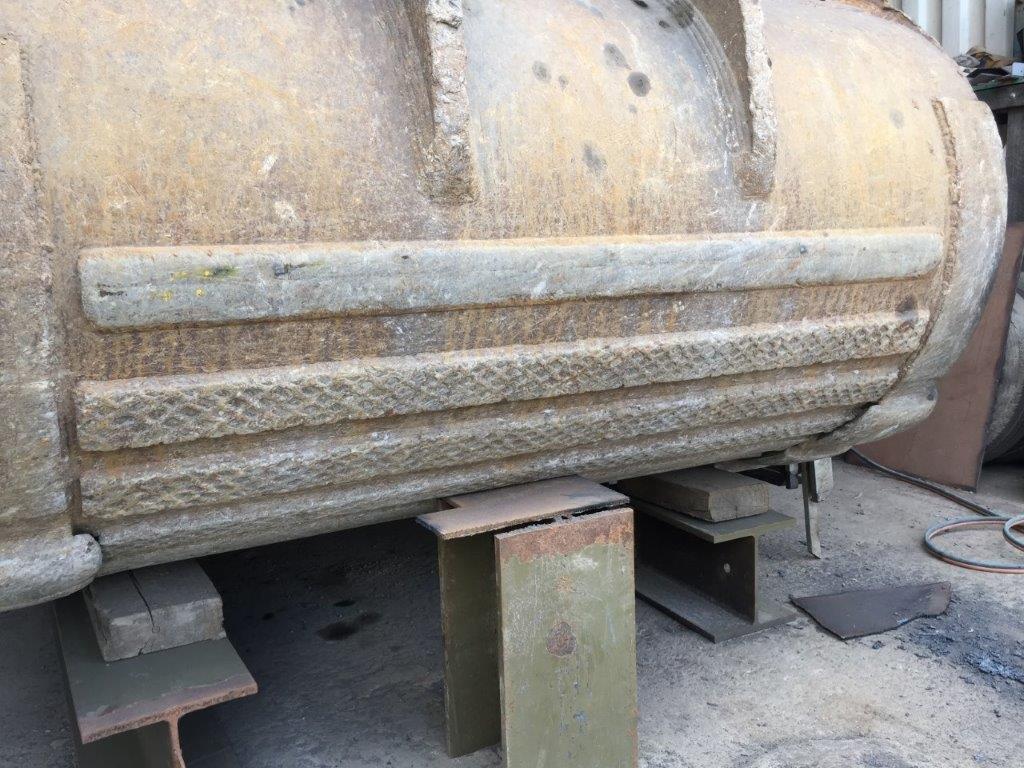

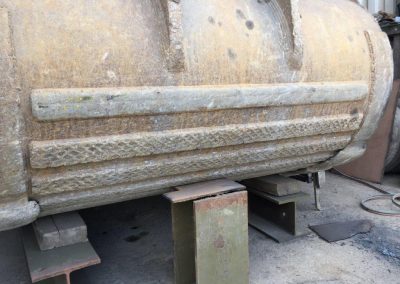

Cross Hatch on Bucket wear strip by Avweld
AbrasaPlate-X Cross Hatch Wear Plate

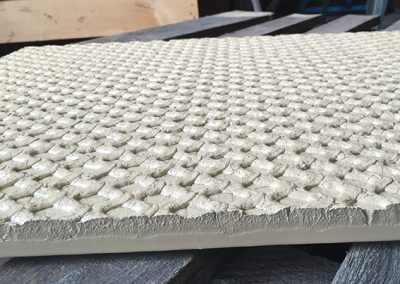

Cross hatch abrasaplate wear plate at Avweld

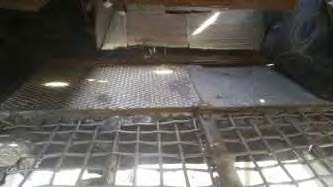

AbrasaPlate-X cross hatch wear liners ready for installation

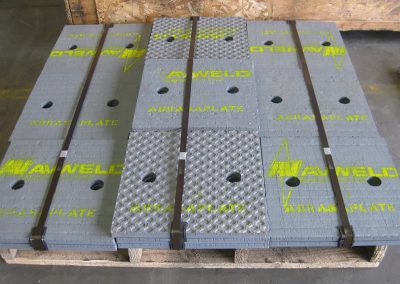

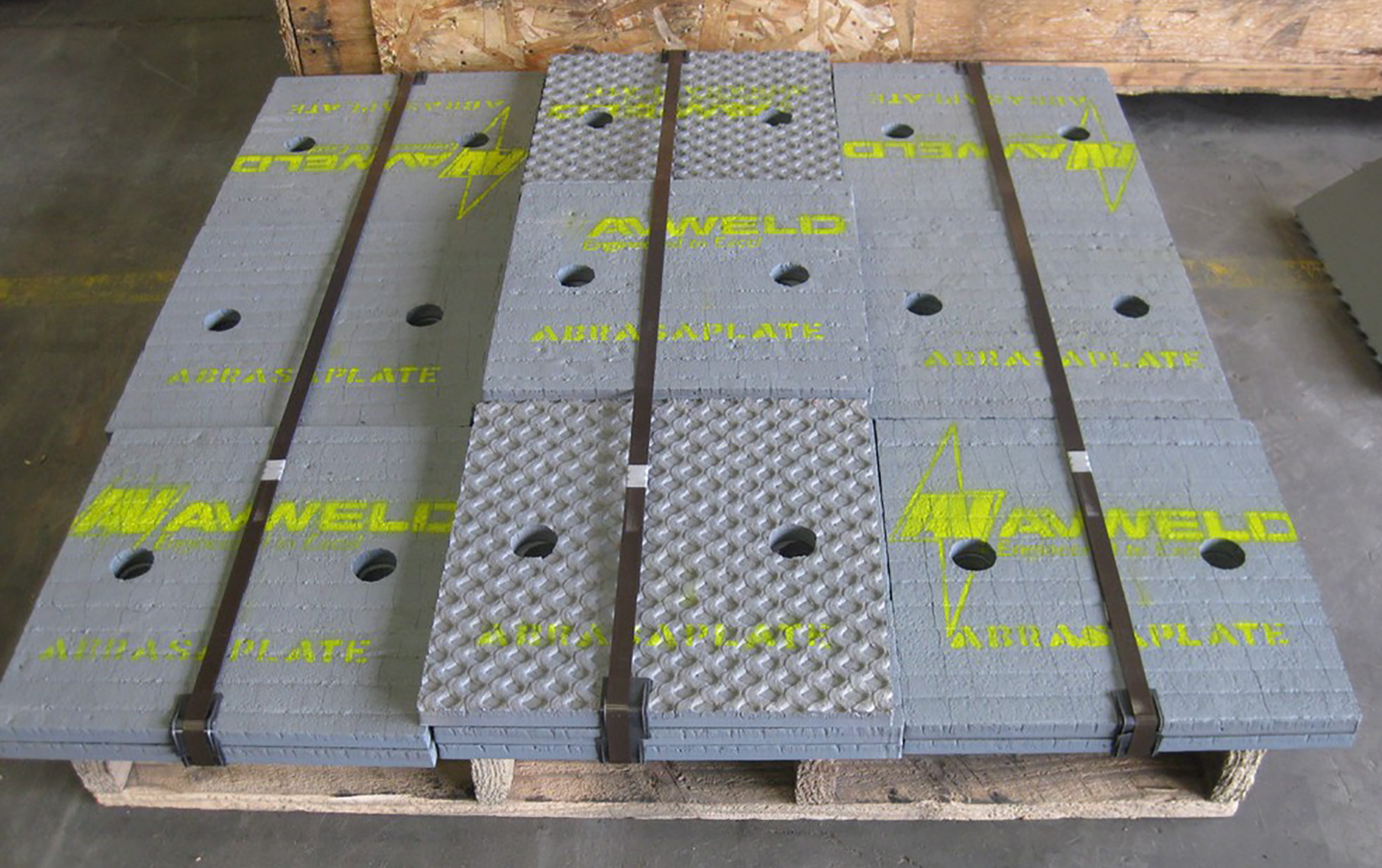

Quarry Impact Wear Plate AbrasaPlates 9on10
Bucket with AbrasaPlate X Wear Plate

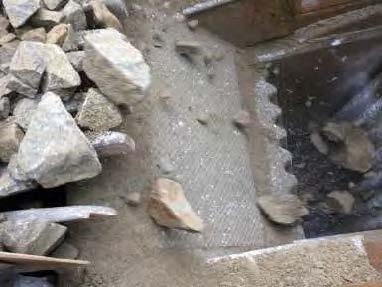

Quarry chute wear plates from AbrasaPlate-X cross hatch

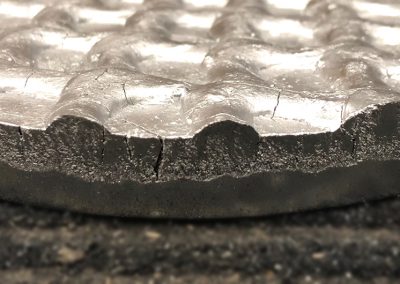

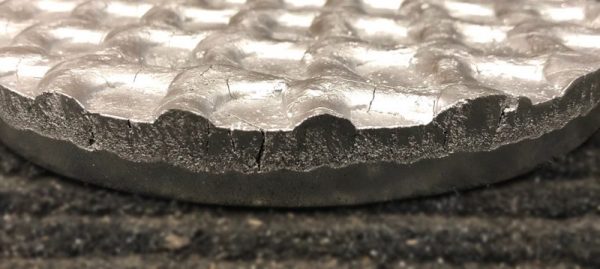

Cross hatch AbrasaPlate has excellent impact resistance
